Receptacle Collimator
FC/PC, FC/APC, SMA905

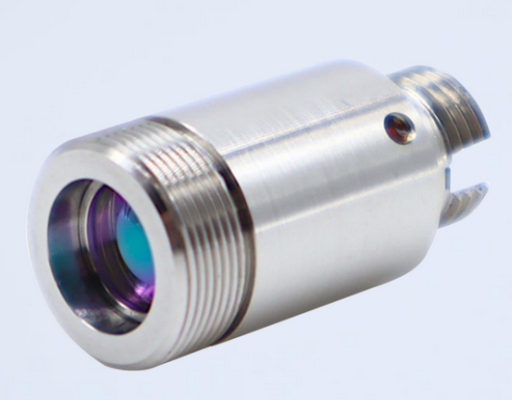

The receptacle collimator consists of an Aspheric Lens, a non-magnetic stainless steel housing, and an FC/PC, FC/APC, or SMA 905 receptacle to mate with the relative type of patch cable connectors.
Because of chromatic aberration, the effective focal length (EFL) of the aspheric lens is wavelength dependent. Each receptacle collimator is pre-aligned to ensure the divergence angle is within 0.05°.
Both single mode type and multimode type receptacle collimators are available.
- Fiber Optic R&D and Labs
- Fiber-coupled Detection Systems
- Beam Expanding System
- Fiber to Fiber Coupling
- Low Insertion Loss
- Diffraction-limited Performance
- AR coating on both sides of Lens minimizes surface reflection
- High Accuracy of Collimattion
- Various Wavelengths Available

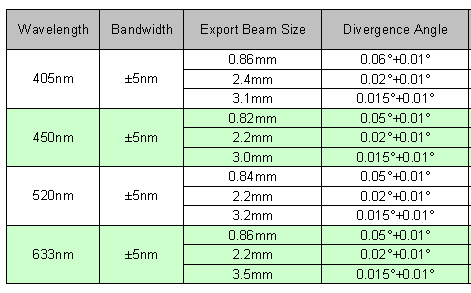

400 nm - 650 nm, SM Fiber Receptacle Collimator

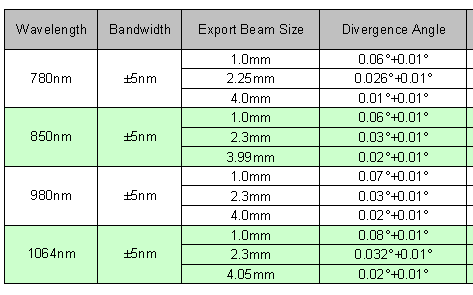

780 nm - 1064 nm, SM Fiber Receptacle Collimator

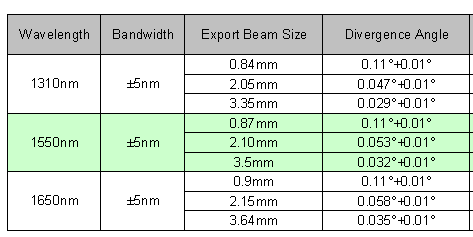

1200 nm - 1700 nm, SM Fiber Receptacle Collimator

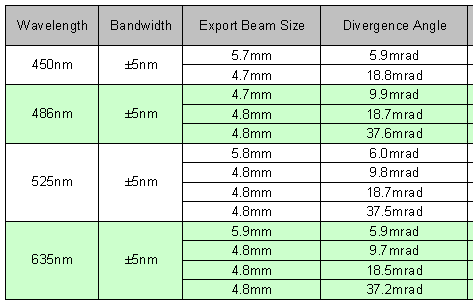

Multimode 400 nm - 650 nm, Fiber Receptacle Collimator

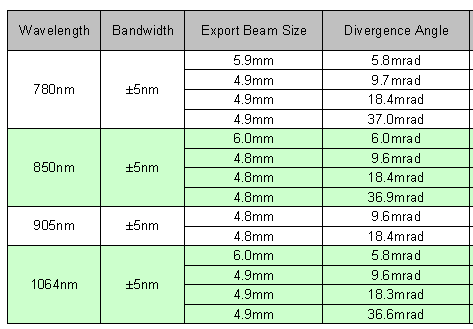

Multimode 780 nm - 1064 nm, Fiber Receptacle Collimator

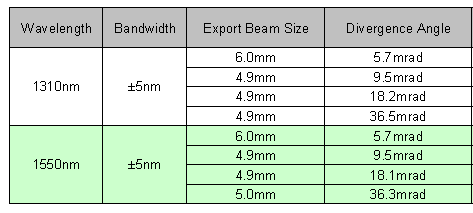

Multimode 1200 nm - 1700 nm, Fiber Receptacle Collimator
