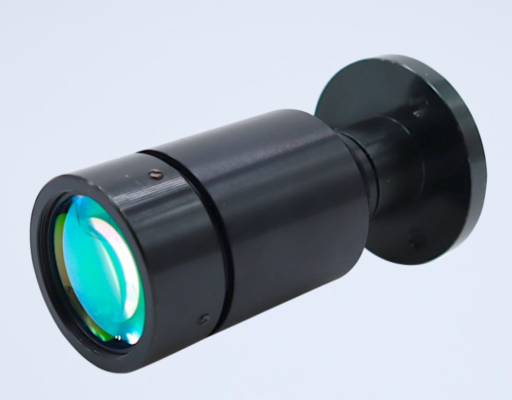

Long Distance Collimator
Long Distance Collimator is using air-spaced doublet lens, providing a collimation distance up to 200 meters.
The fiber optic beam can be collimated and shaped for different lasers output through fiber optic connections, providing diffraction-limited performance at the design wavelength. The structure of this series of collimators is compact. Aberration correction is performed during design by selecting an air-spaced doublet lens series, which has excellent collimation effect and ability to couple space light. The effective focal length of the doublet lens depends on the wavelength. Therefore, this series of collimators should be used at the design wavelength for optimal performance.
Both single mode type and multimode type long distance collimators are available.
- Fiber Optic R&D and Labs
- Long Distance Collimation
- Target Locating
- Fiber to Fiber Coupling
- Long Distance Collimation
- Diffraction-Limited Performance
- Simplifies Fiber-Coupled Detection Systems
- High Accuracy of Collimattion
- Various Wavelengths Available

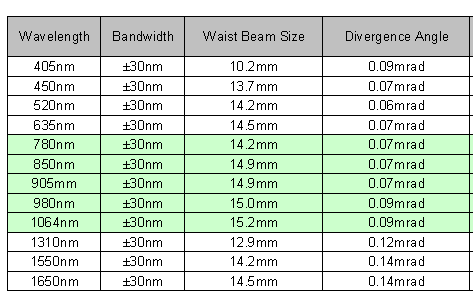

400 nm - 1700 nm, SM Fiber, Long Distance Collimator

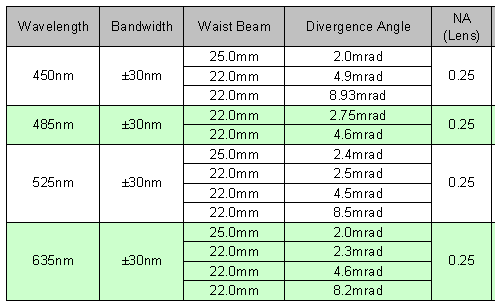

Multimode 400 nm - 650 nm, Long Distance Collimator

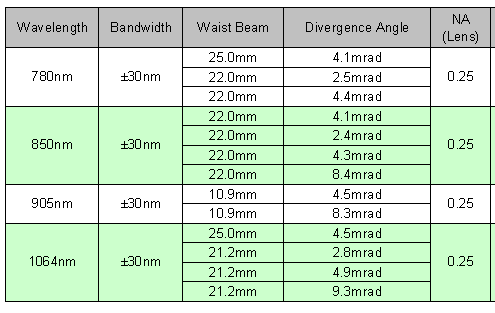

Multimode 780 nm - 1064 nm, Long Distance Collimator

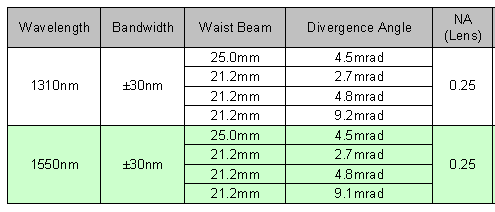

Multimode 1200 nm - 1700 nm, Long Distance Collimator
