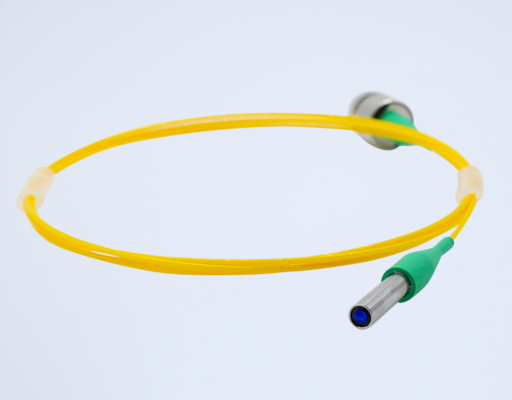

Telemetry Fiber Collimator
Telemetry Fiber Collimator can focus the light emitted from the optical fiber as a small spot at a specified position. It also has the convergence function of the return light after the beam is reflected from the object to be measured, so as to achieve the purpose of measuring different characteristics by comparing the phase, energy, spectrum and wavelength with the return beam. It can realize precision surface detection, interferometric imaging, distance detection. It can be used for industrial automation, medical OCT, optical testing instrument, etc.
Various wavelengths such as 405 nm, 525 nm, 650 nm, 780 nm Telemetry Fiber Collimators are available.
- Industrial Automation
- Medical OCT
- Optical Testing Instrument
- Fiber Optic Labs
- Precision Surface Detection
- Interferometric Imaging
- Long Distance Detection
- Various Wavelengths Available

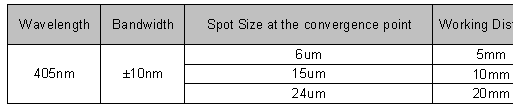

405 nm, Telemetry Fiber Collimator

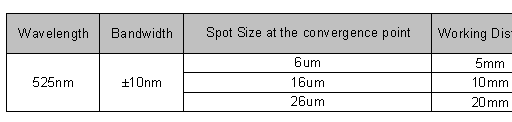

525 nm, Telemetry Fiber Collimator

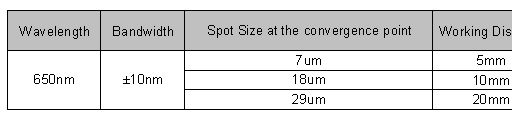

650 nm, Telemetry Fiber Collimator

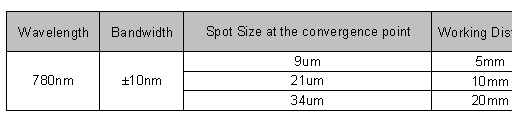

780 nm, Telemetry Fiber Collimator
