PM Fiber Collimator
Aspheric Lens Collimator with PM fiber pigtailed is an optical device which changes the diverging light from a fiber into a parallel beam, or couples a parallel beam into a fiber, by using an aspheric lens.

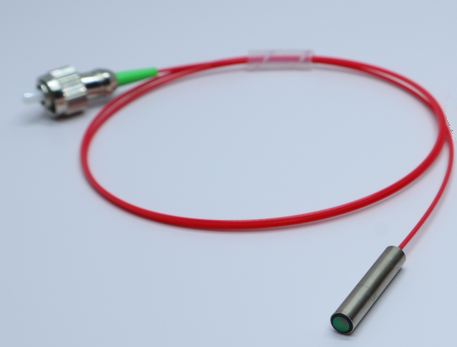

The Collimator consists of a stainless steel housing and an aspheric lens. 1m of polarization-maintaining fiber is pigtailed to the compact collimation package. The slow axis is marked on the housing.
The fiber end pigtailed to the collimation package is angle-polished and AR-coated to minimize reflections at the design wavelength. The long focal lengths versions have an angled housing to accommodate the angle polish. The deflection caused by the angled output over the extremely short focal lengths collimators is negligible, allowing these versions to have straight housings.
Fiberwe manufactures our Collimator with various types of fiber, such as SMF, MMF, PMF, and specialty fiber like non-fluorescent, UV fibers, and Mid-IR fibers etc.
- Fiber Optic Interferometric Sensors
- Optical Coherence Detection
- WDM
- Isolator
- Circulator
- Low Insertion Loss
- High Extinction Ratio
- High Return Loss
- High Accuracy of collimattion
- Various Wavelengths Available

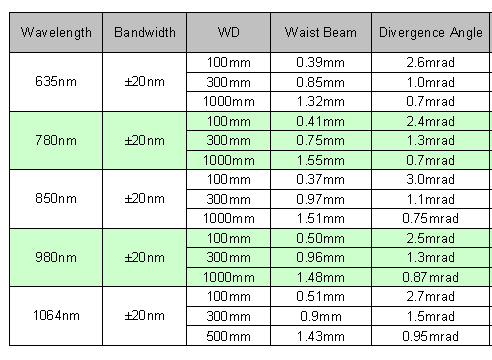

630 nm - 1064 nm, PM Pigtailed Aspheric Collimators

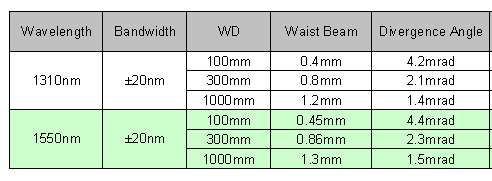

1270 nm - 1700 nm, PM Pigtailed Aspheric Collimators

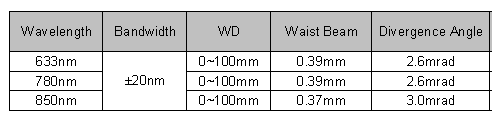

Adjustable WD0~100mm, 630 nm - 850 nm, PM Pigtailed Aspheric Collimators

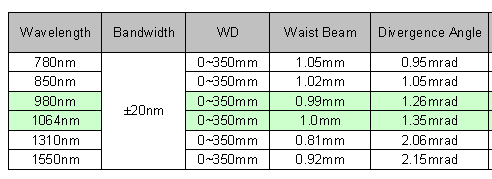

Adjustable WD0~350mm, 780 nm - 1700 nm, PM Pigtailed Aspheric Collimators

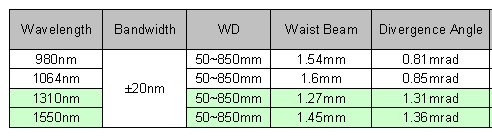

Adjustable WD50~850mm, 980 nm - 1700 nm, PM Pigtailed Aspheric Collimators
