Fiber Optic Components



Achromatic Lens Collimator

for SM and MM Fiber

Optical_Module

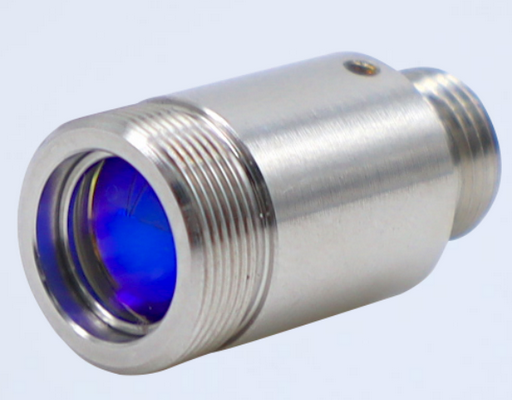

Achromatic Lens Collimator consists of a group of long focal length collimating optical systems with chromatic aberration and distortion compensation design, making the focal length of the collimator insensitive to wavelength bandwidth.

When the divergent light beam is emitted from the optical fiber, Achromatic Lens Collimator provides a good collimating effect and beam shape within a certain distance range. The optical surfaces of the lens group are AR coated to minimize surface reflection. The relative position of the lens and fiber is precisely adjusted to ensure that the deviation angle of the emitted light is within 0.3°, and Fiberwe standardized manufacturing processes ensure stable consistency of the product.

Both single mode type and multimode type achromatic lens collimators are available.

Application

  • Fiber Optic R&D and Labs
  • Fiber Photometry Applications
  • Beam Expanding System
  • Fiber to Fiber Coupling

Features

  • Achromatic Performance
  • Low Insertion Loss
  • AR coating on both sides of Lens minimizes surface reflection
  • High Accuracy of Collimattion
  • Various Wavelengths Available

Specifications

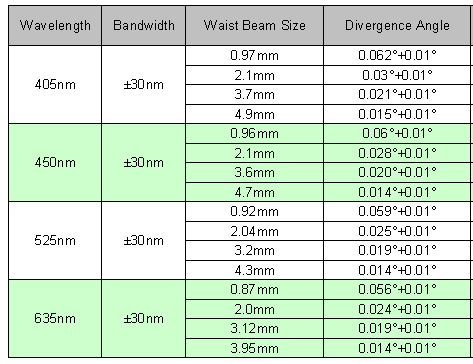

400 nm - 650 nm, SM Fiber, Achromatic Lens Collimator

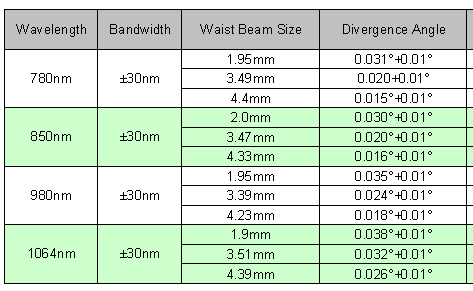

780 nm - 1064 nm, SM Fiber, Achromatic Lens Collimator

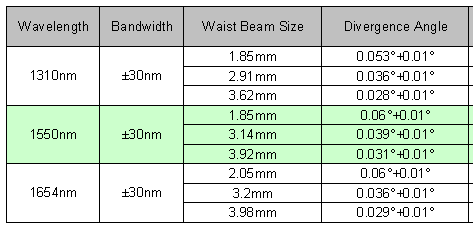

1200 nm - 1700 nm, SM Fiber, Achromatic Lens Collimator

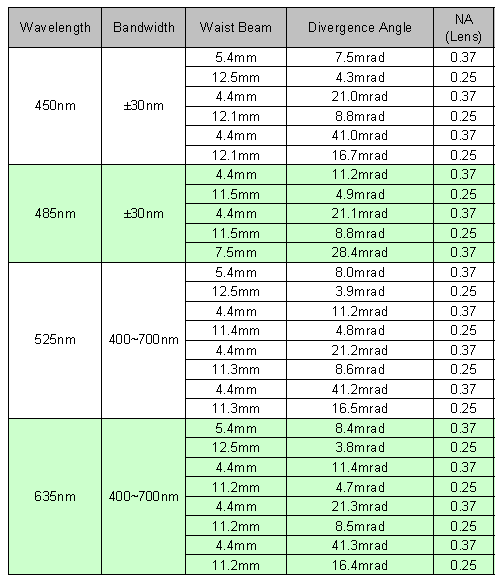

Multimode 400 nm - 650 nm, Achromatic Lens Collimator

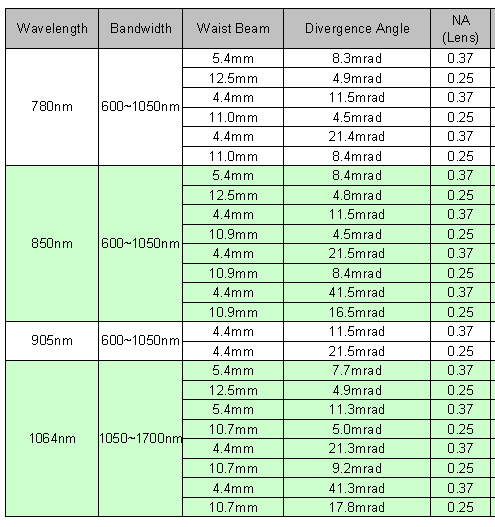

Multimode 780 nm - 1064 nm, Achromatic Lens Collimator

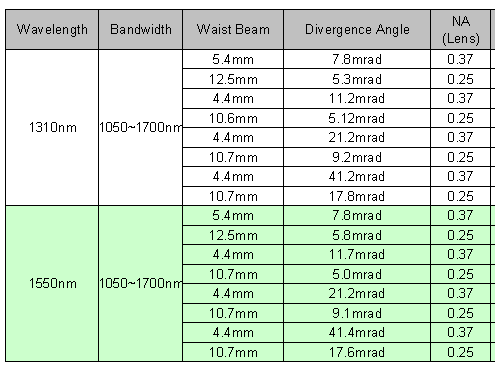

Multimode 1200 nm - 1700 nm, Achromatic Lens Collimator
