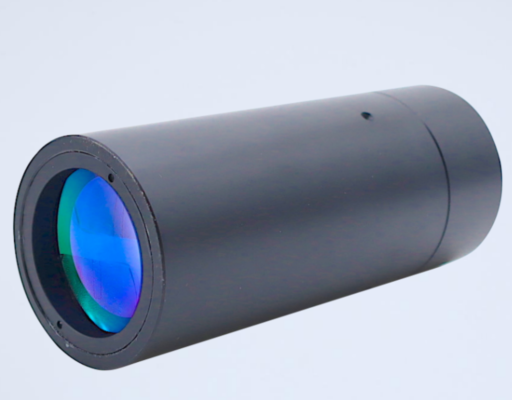

Long Range Collimator
Long Range Collimator is using multi air-spaced lenses, providing a collimation distance up to 5km.
The fiber optic transmission beam is subjected to large-beam collimation and shaping, and is used for high-power, long-distance transmission, and pulse-type laser output. Within the operating distance, the beam has good collimating effect, with uniform energy distribution, distinct and clear edges. During the design, an air-spaced lens series is selected to accommodate single-mode and multimode fibers, as well as large core fibers, to achieve laser telemetry sensing, illumination, interference and other functions.
Both single mode type and multimode type long range collimators are available.
- Laser illumination
- Ultra Long Distance Collimation
- Laser Telemetry Sensing
- Laser Interference
- Ultra Long Distance Collimation
- Diffraction-Limited Performance
- Simplifies Fiber-Coupled Detection Systems
- High Accuracy of Collimattion
- Various Wavelengths Available

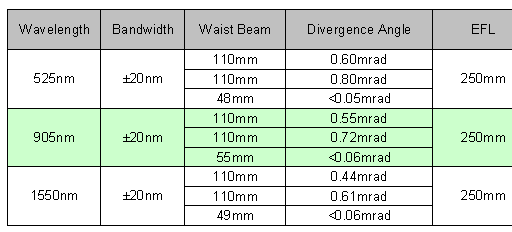

2km, SM or MM Fiber, Long Range Collimator

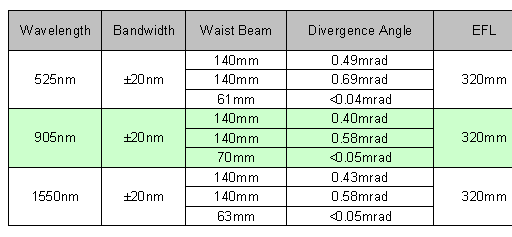

3km, SM or MM Fiber, Long Range Collimator

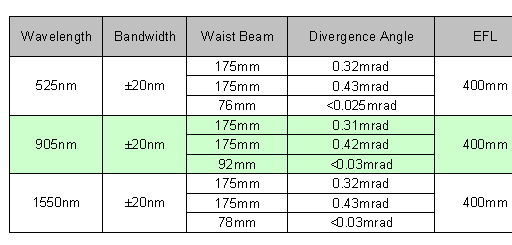

5km, SM or MM Fiber, Long Range Collimator
