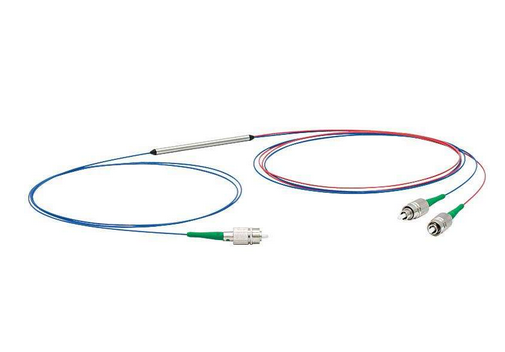

Fused WDM



align=right

Fused WDM (wavelength-division multiplexer) uses fused biconical taper technology to transmit multiple signals onto single optical fiber. This technique enables bidirectional communications over one strand of fiber, as well as multiplication of capacity.

Fused WDM offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. These components have been extensively used in CATV, WDM networks, Fiber sensor and fiber optics instrumentation.

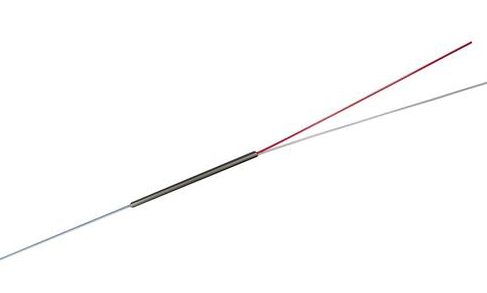

Fiberwe manufactures 1310/1550nm, 980/1550nm, 1480/1550nm, 1x2 Fused WDM in form of device or modules, and polarization mantaining PM Fused WDM.

Application

  • Testing Instruments
  • Fiber Laser
  • EDFA
  • Fiber Sensor

Features

  • Low Polarization Dependent Loss
  • High Isolation
  • Low Insertion Loss
  • High Stability

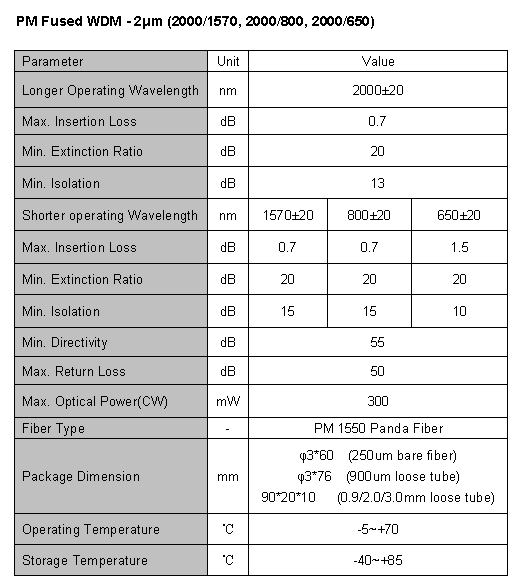

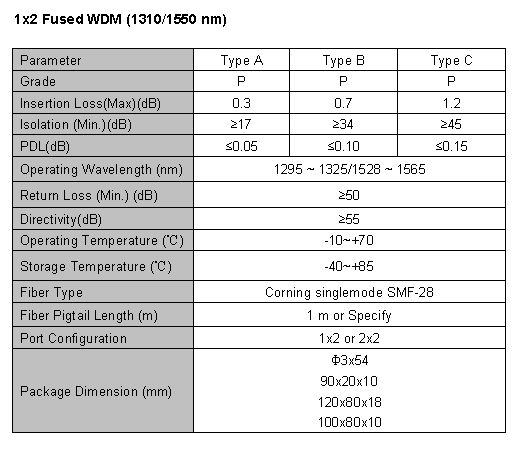

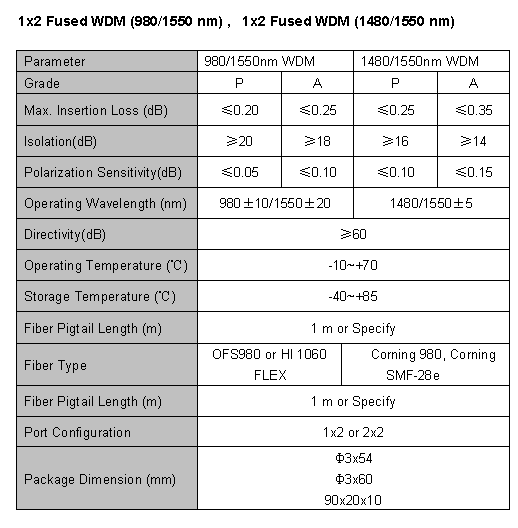

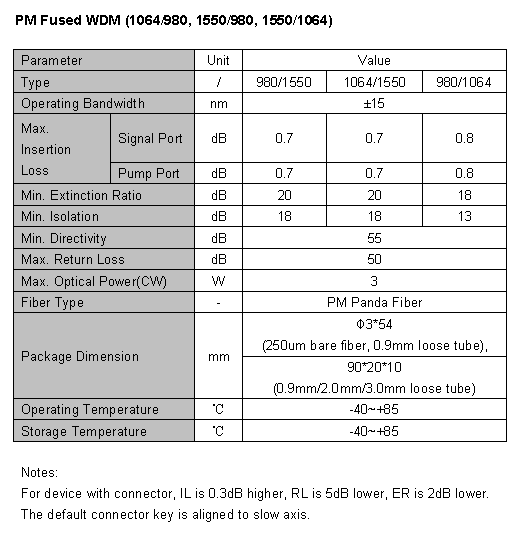

Specifications



Further Information
Receptacle
Fused WDM
