Fiber isolators protect light sources from back reflections and signals that can cause intensity noise and optical damage. Optical isolators, also known as Faraday isolators, are magneto-optic devices that preferentially transmit light in the forward direction while absorbing or displacing light propagating in the reverse direction.

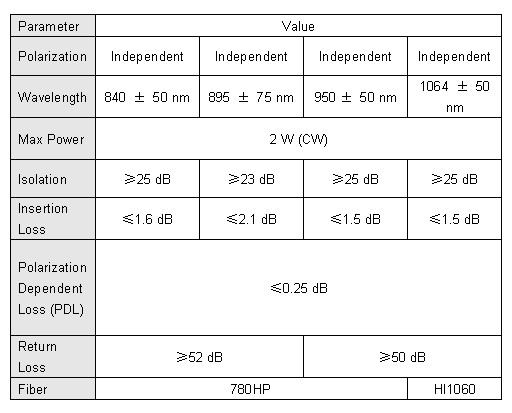

Fiberwe's polarization-independent Broadband fiber optic isolator for SLDs is compatible with single mode (SM) fibers. The Flat Isolation is over a 100 nm or 150 nm wavelength range. Center wavelengths include 840 nm, 895 nm, 950 nm, 1064 nm. There is 0.8 m to 1 m of fiber built in to each side of the isolator, and an arrow on the body indicates the transmission direction. In addition, each unit is tested before shipment to ensure compliance with our specifications.

• Fiber Optic Laser
• Fiber Optic Sensor
• Fiber Optic Amplifier
• Fiber Optic Communications
