NIR Fiber Optic Isolator

with SM Fiber (770 - 1060 nm)

Optical_Module

Fiber isolators protect light sources from back reflections and signals that can cause intensity noise and optical damage. Optical isolators, also known as Faraday isolators, are magneto-optic devices that preferentially transmit light in the forward direction while absorbing or displacing light propagating in the reverse direction.

Fiberwe's polarization-independent NIR isolator is compatible with single mode (SM) fibers. Center wavelengths include 780nm, 850nm, 940nm, 980nm, 1030nm, 1050nm. There is 0.8 m to 1 m of fiber built in to each side of the isolator, and an arrow on the body indicates the transmission direction. In addition, each unit is tested before shipment to ensure compliance with our specifications.

Application

  • Fiber Optic Laser
  • Fiber Optic Sensor
  • Fiber Optic Amplifier
  • Fiber Optic Communications

Features

  • Low Insertion Loss
  • High Isolation
  • High Optical Power
  • High Stability and Reliability

Specifications

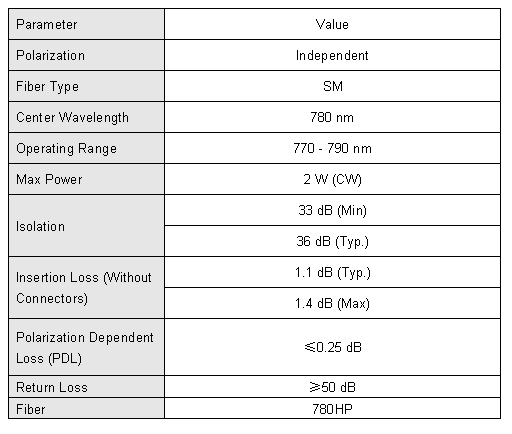

780 nm Polarization-Independent Isolator with SM Fiber

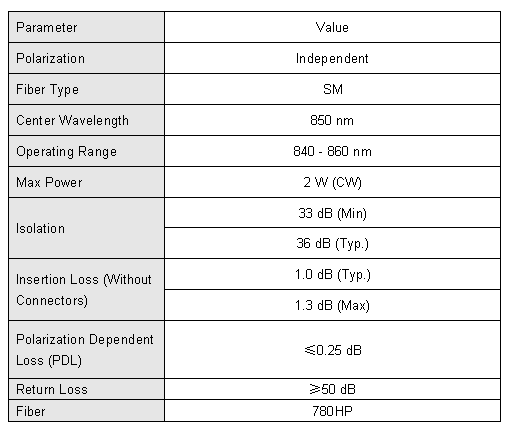

850 nm Polarization-Independent Isolator with SM Fiber

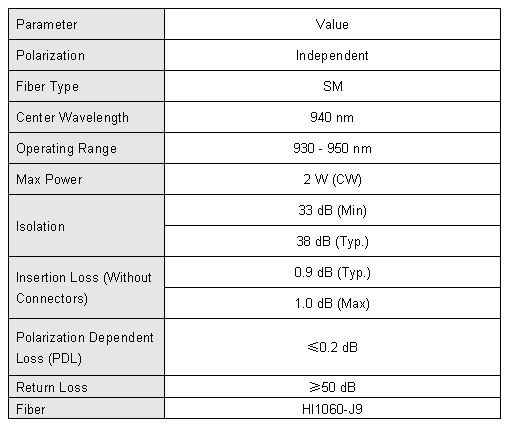

940 nm Polarization-Independent Isolator with SM Fiber

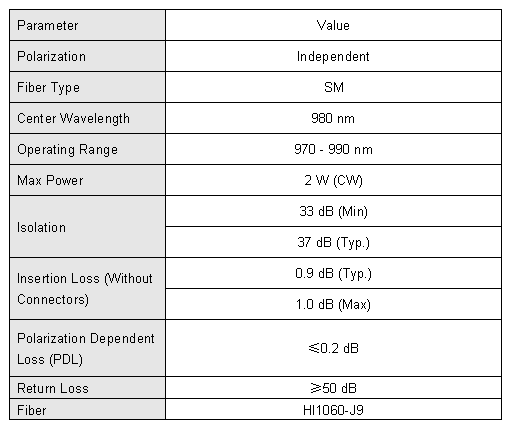

980 nm Polarization-Independent Isolator with SM Fiber

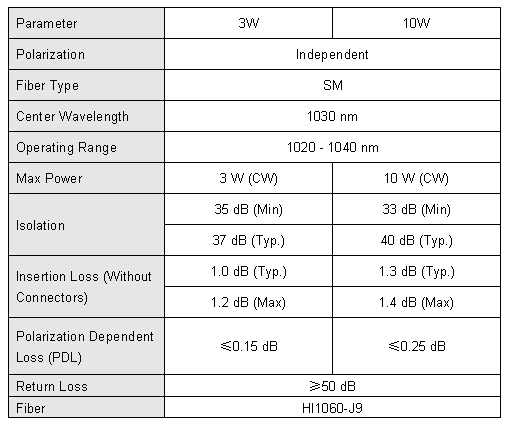

1030 nm Polarization-Independent Isolator with SM Fiber

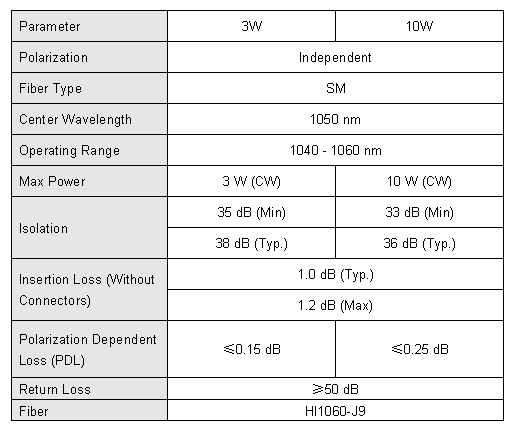

1050 nm Polarization-Independent Isolator with SM Fiber

Further Information
Receptacle
770-1060nm SM
