NIR Fiber Optic Isolator
with PM Fiber (770 - 1060 nm)
Fiber isolators protect light sources from back reflections and signals that can cause intensity noise and optical damage. Optical isolators, also known as Faraday isolators, are magneto-optic devices that preferentially transmit light in the forward direction while absorbing or displacing light propagating in the reverse direction.
Fiberwe's polarization-dependent NIR isolator is compatible with polarization- maintaining (PM) fibers. The slow axis is aligned with the connector key. Center wavelengths include 780nm, 940nm, 980nm, 1030nm, 1050nm. There is 0.8 m to 1 m of fiber built in to each side of the isolator, and an arrow on the body indicates the transmission direction. In addition, each unit is tested before shipment to ensure compliance with our specifications.
- Fiber Optic Laser
- Fiber Optic Sensor
- Fiber Optic Amplifier
- Fiber Optic Communications
- High Polarization Extinction Ratio
- High Isolation
- High Optical Power
- High Stability and Reliability

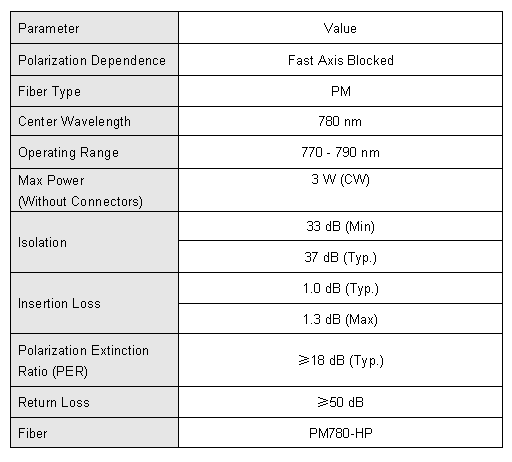

780 nm Polarization-Dependent Isolator with PM Fiber

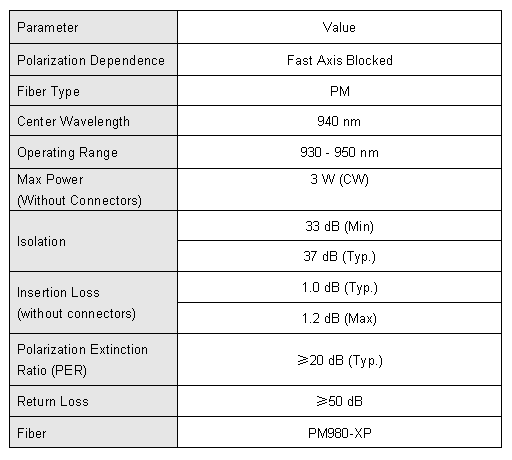

940 nm Polarization-Dependent Isolator with PM Fiber

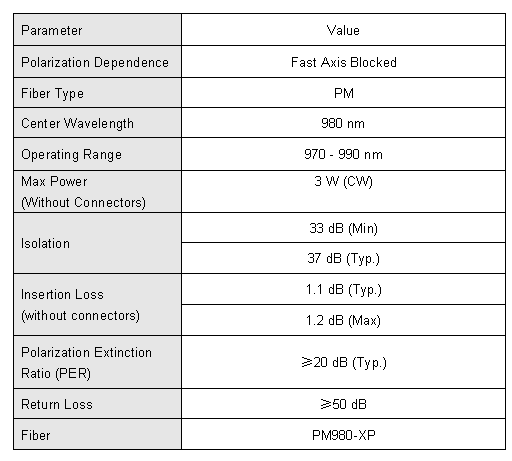

980 nm Polarization-Dependent Isolator with PM Fiber

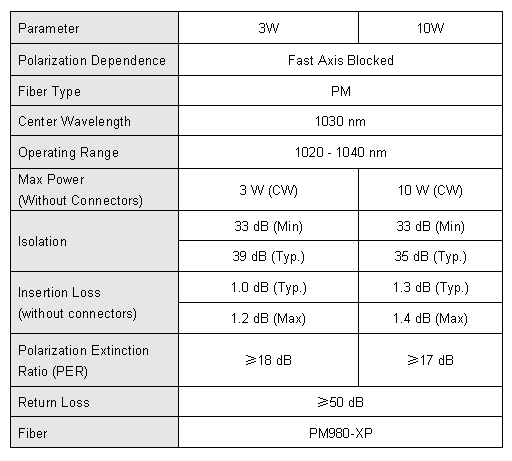

1030 nm Polarization-Dependent Isolator with PM Fiber

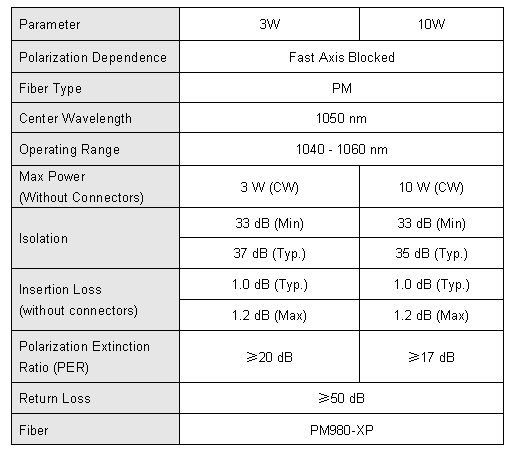

1050 nm Polarization-Dependent Isolator with PM Fiber
