MXC to MTP Cable

MTP / MPO Cable Assemblies

The newest MXC optical interconnect solutions utilize the expanded-beam MT technology to provide cutting-edge high-density interconnection. It provides a direct card edge interface to embedded optical engines for a wide variety of equipment interface applications.

Fiberwe provide fully-customized fiber assemblies using the newest MXCR connector. Our MXC to MTP/MPO cable assemblies is a convenient solution allows conversion from the MXC interface to individual MTP/MPO for connections to active optical modules.

Features

  • Cutting-edge high-density, 132 MXC receptacle fit into a 19"1U panel, increase 40% faceplate space and 59% PCB area
  • Less sensitive to debris and contamination, Recessed ferrule with expanded-beam MT technology
  • Reduces cost, complexity and footprint, Eliminated the traditional adapter and reduced component count
  • High speed connection solution for blackplane, Convenient connection from PCB to card edge by using one end MXC receptacle, the other end MTP/MPO
  • Terabit per second bandwidth capability, 64 fibers each transferring data at 25Gbps, allowing 1.6 TBit/s per connector

Applications

  • Telecommunication Hubs and Servers
  • Storage Facilities
  • Open-Compute Architectures
  • Cloud Data Centers
  • Switching and routing fabrics

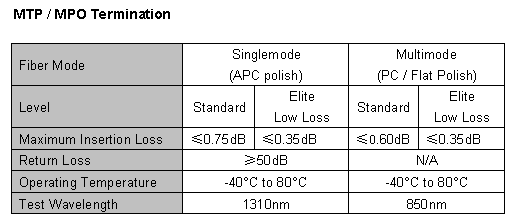

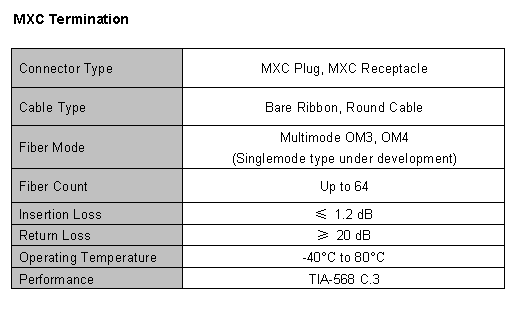

Specifications
