PRIZM LightTurn to MTP Cable

MTP / MPO Cable Assemblies

PRIZM LightTurn fiber assemblies are used to mate between Parallel Optical Devices (POD), it supports simple mating to board-mounted modules and other high density transceivers that deploying parallel optic technology.

The alignment of the PRIZM fiber assembly and the POD supports a significant increase in optical T/R module density on circuit boards, it improves fiber routing by direct connection to the card edge, optimizing airflow and port density for migrating to the next-generation high speed, high density networks.

Our cable assembly connects PRIZM connector to the MTP style connector with customized configurations. It is available in 1.6mm round jacketed and bare ribbon cables, with the choices of OM3 or OM4 for using across multiple applications.

Features

  • Optimizes PCB space with improvement of air flow and fiber routing, Connects PRIZM to the MTP with 1.6mm round jacketed & bare ribbon cables
  • Customized fiber assemblies for POD by using PRIZM LightTurn connector, Increases in optical T/R module density on circuit boards with high flexibility.
  • Options for OM3 or OM4, Satisfies the needs from the customers for various engineering designs and applications
  • Rapid deployment in high density and speed computing application, Caters for deployment in data centers, electronic devices and telecom sections

Applications

  • High speed computercom markets
  • Datacom
  • Telecom

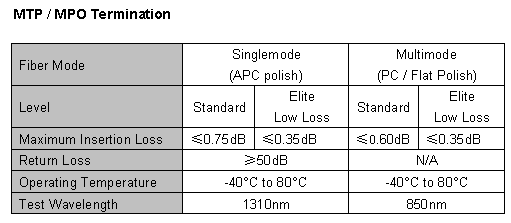

Specifications
