Fiber Optic Components

Converting Adapter

width=200

Optical Converting Adapters connect different kinds of connector types ensuring a low connection loss. Because the ferrule OD’s are the same, to connect MU Connectors with LC connectors is relatively easy. However, special techniques are required for connecting the connector in which ferrule OD’s are different.

Converting Adapters for LC-SC and MU-SC type configurations are composed of special converting ferrules. These converting adapters are of high reliability, low insertion loss, and stable mating durability. The Converting Adapters can be taken apart by using a special tool specifically designed for these Adapters. The ferrules can then be cleaned of any dust or dirt that adhered to the adapters after multiple connector insertions.

All of our Optical Converting Adapters are composed of our own top quality Zirconia Ferrules and Split Sleeves ensuring stable performance at a high quality level.

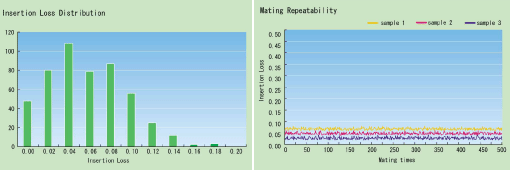

Insertion Loss Distribution / Mating Repeatablility

Specially selected ferrules providing low insertion loss and mating reoeatability

コンバーティングアダプタ挿入損失分布

Appearance: Converting Adapter

width=150 width=150 width=150
LC-SC Converting Adapter MU-SC Converting Adapter LC-MU Converting Adapter
